The Four-Wheel Drive Multi-Purpose ATV with Dump Box is designed for both rugged...
See DetailsUTV

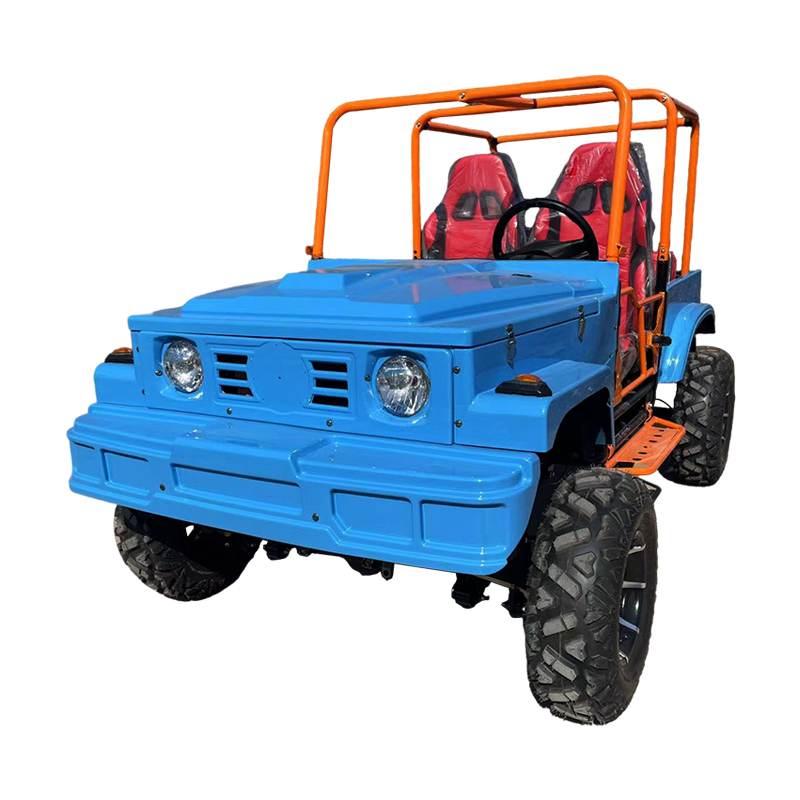

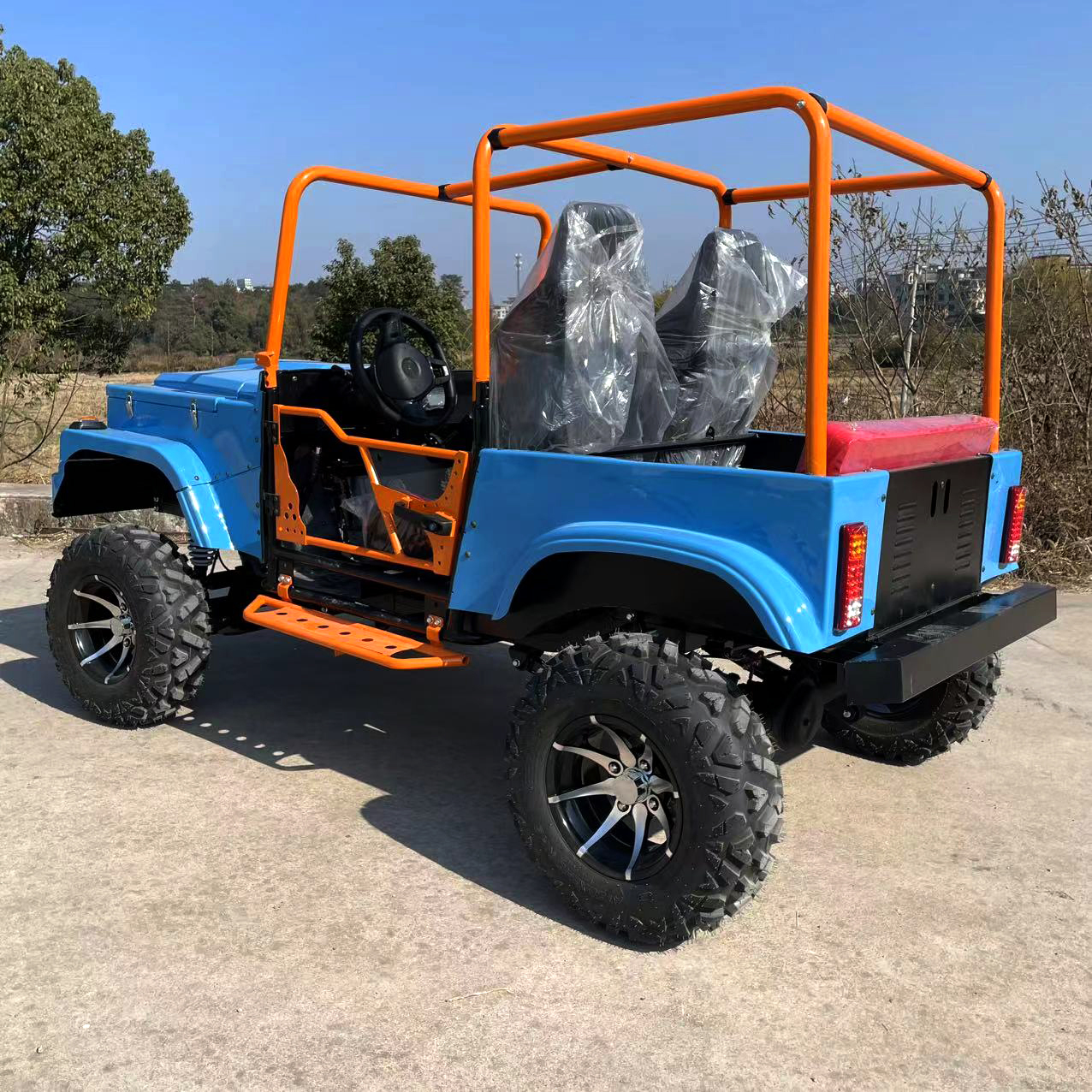

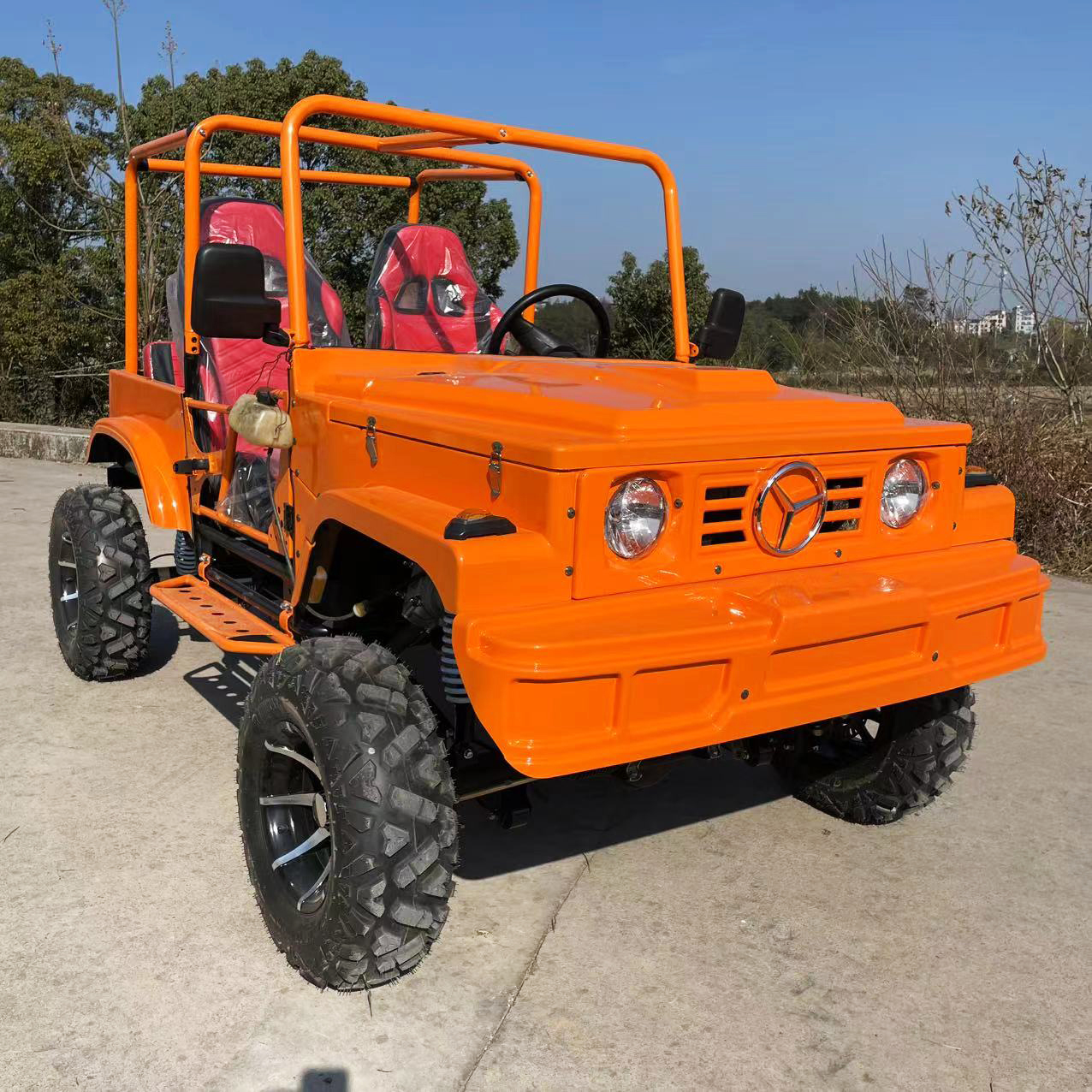

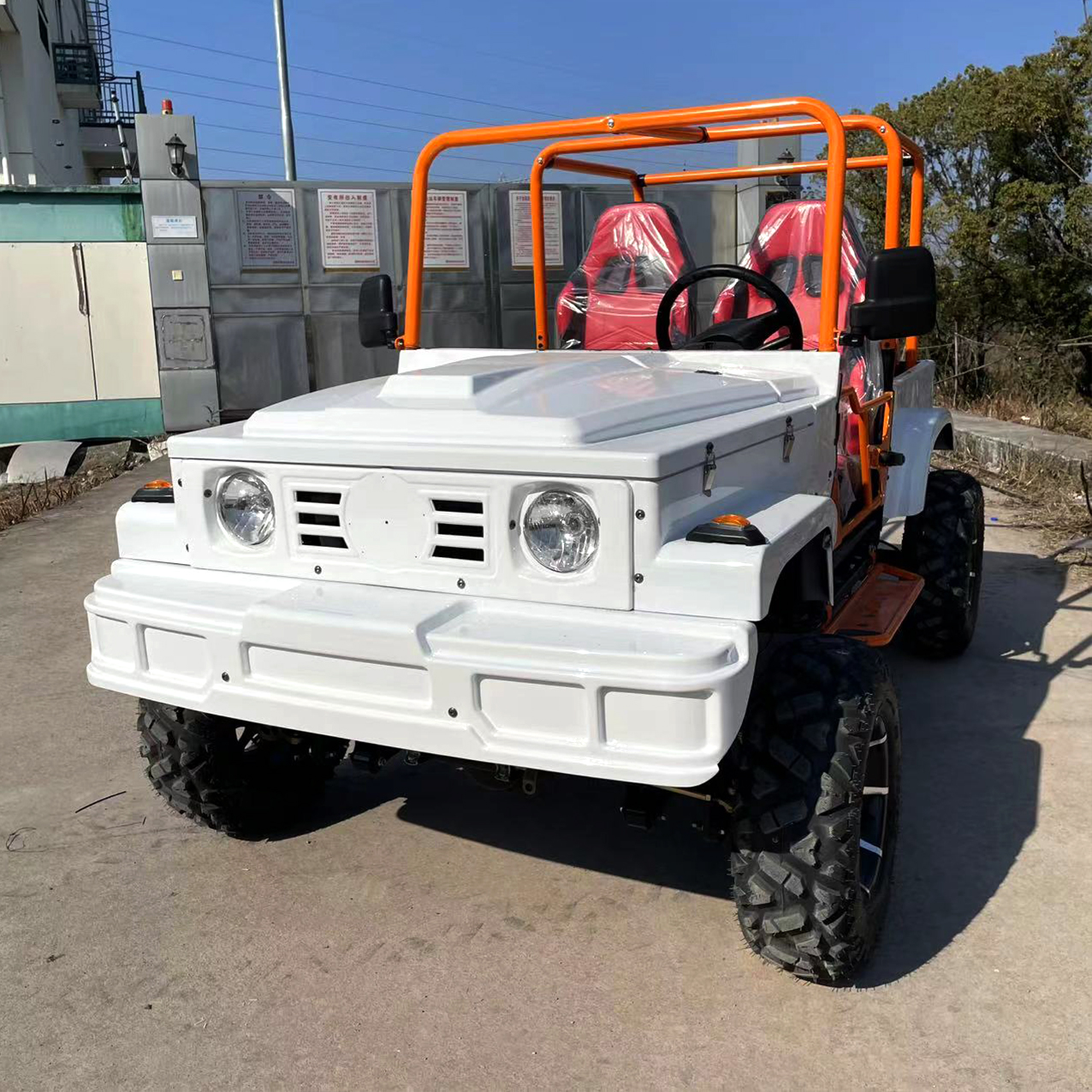

The Four-Wheel Off-Road Jeep Mini UTV is an exceptional vehicle designed for off-road enthusiasts who want to experience thrilling adventures. Available in a variety of colors, this UTV combines rugged performance with stylish aesthetics, offering both functionality and flair for your outdoor excursions.
|
Five-seat G-Class assault vehicle gasoline version two-wheel drive/four-wheel drive |
|
|
Displacement |
300cc engine |
|
Frame |
Non-load bearing body |
|
Engine type |
Single cylinder. Water-cooled. Four-stroke |
|
Clutch type |
Dry automatic centrifugal |
|
Transmission mode |
Rear drive shaft drive belt (one-piece full bridge) differential |
|
Speed Shift |
Continuously Variable Transmission (CVT) |
|
Shock absorption method |
Front and rear longitudinal leaf springs + hydraulic shock balancing system |
|
Lubrication method |
Pressure splash |
|
Brake type |
Four-wheel hydraulic disc brakes |
|
Fuel Type |
Gasoline above 92# |
|
Seat height |
670mm |
|
Wheelbase |
1850mm |
|
Fuel tank capacity |
25L |
|
Battery Model |
12V9Ah |
|
Economical fuel consumption |
6L/100km |
|
Maximum load |
450kg |
|
Vehicle Net Weight |
500kg |
|
Ground Clearance |
270mm |
|
Startup method |
Electric start |
|
Tire specifications |
12 inches |
|
Dimensions |
2900-1520-1620/Length, width and height |
|
Electric version of the five-seater assault vehicle |
|
|
Motor |
3000W |
|
Battery |
60V52A |
|
Frame |
Non-load bearing body |
|
Transmission mode |
Rear drive shaft drive belt (one-piece full bridge) differential |
|
Speed Shift |
High Gear |
|
Gear |
Neutral Reverse Forward |
|
Shock absorption method |
Front and rear longitudinal leaf springs + hydraulic shock balancing system |
|
Lubrication method |
Pressure splash |
|
Brake type |
Four-wheel hydraulic disc brakes |
|
Battery life |
30-40 km |
|
Seat height |
670mm |
|
Wheelbase |
1850mm |
|
Speed |
45-50 |
|
Charging time |
About 8 hours |
|
Maximum load |
450kg |
|
Vehicle Net Weight |
450kg |
|
Ground Clearance |
270mm |
|
Startup method |
Electric start |
|
Tire specifications |
12-inch appearance size |
|
2900-1520-1620/Length, width and height |
