UTV

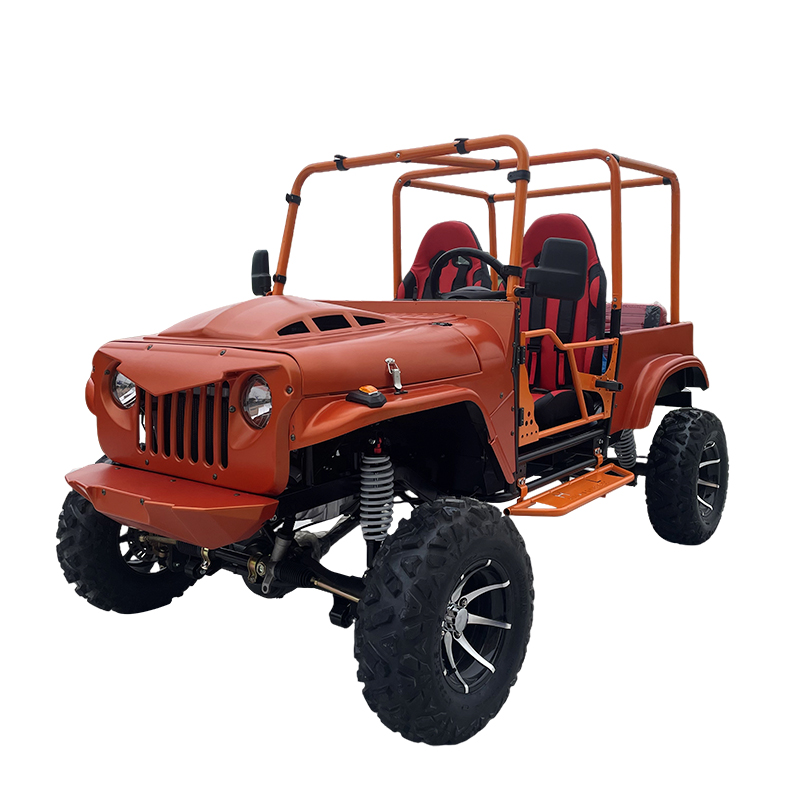

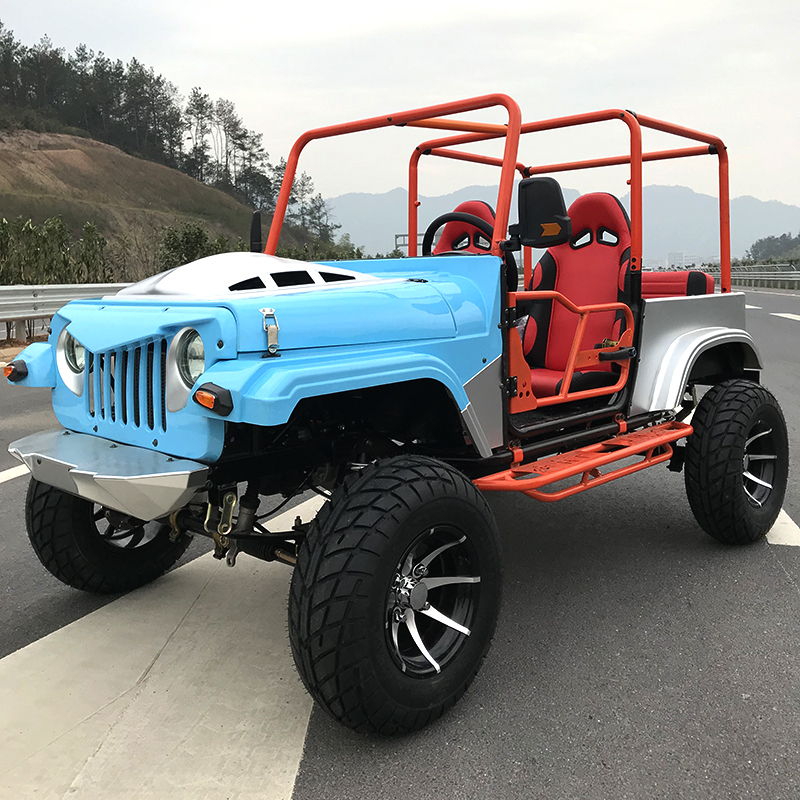

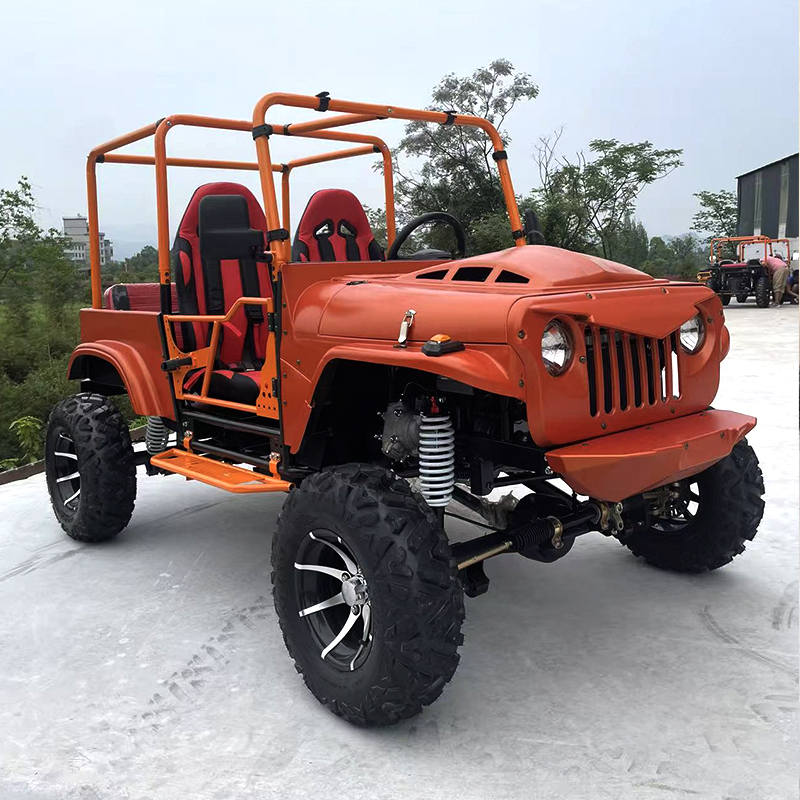

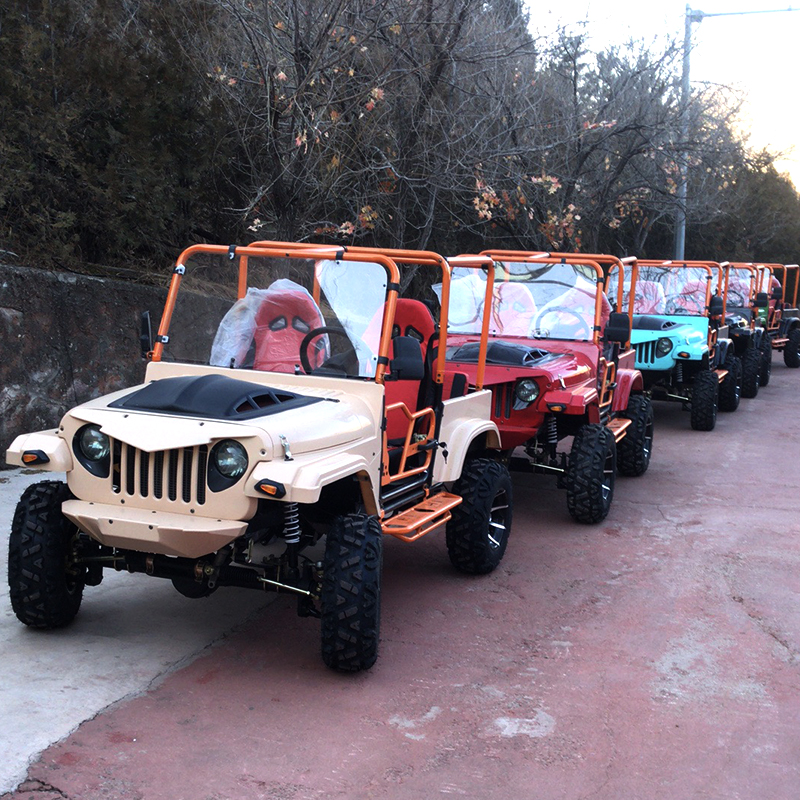

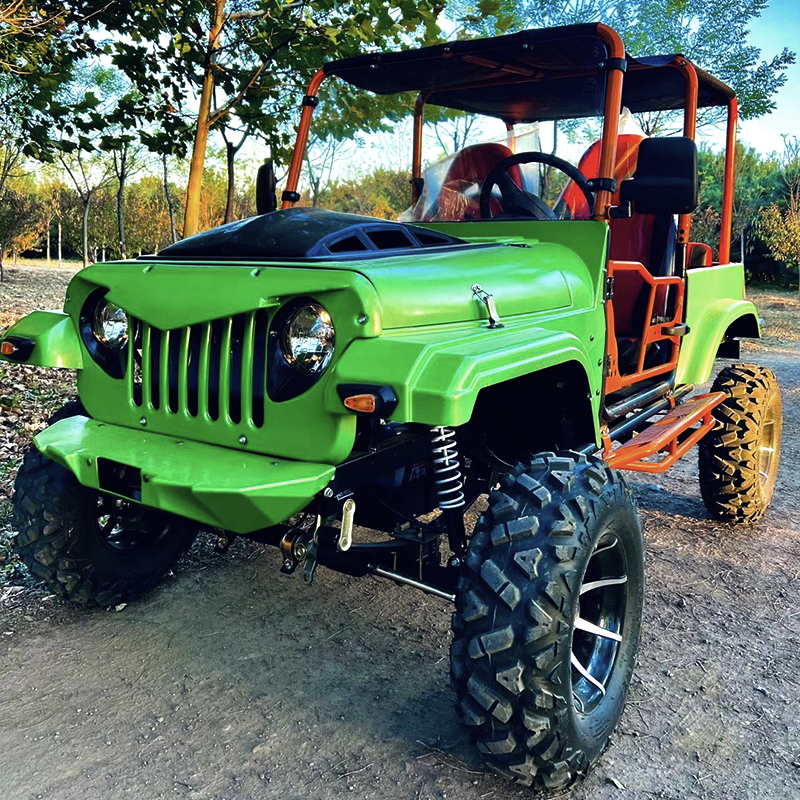

Four Seats Off-Road Mini Four-Stroke UTV

The Four Seats Off-Road Mini Four-Stroke UTV is designed for enthusiasts who seek both performance and durability in an off-road vehicle. Whether you're navigating through rugged trails or enjoying a leisurely ride, this versatile UTV offers the balance of power, comfort, and reliability.

  • Specification
  • Description

Five-seat Wrangler Assault Vehicle Gasoline Version 2WD/4WD



Displacement

300cc engine

Frame

Non-load bearing body

Engine type

Single cylinder. Water-cooled. Four-stroke

Clutch type

Dry automatic centrifugal

Transmission mode

Rear drive shaft drive belt (one-piece full bridge) differential

Speed ​​Shift

Continuously Variable Transmission (CVT)

Shock absorption method

Front and rear longitudinal leaf springs + hydraulic shock balancing system

Lubrication method

Pressure splash

Brake type

Four-wheel hydraulic disc brakes

Fuel Type

Gasoline above 92#

Seat height

670mm

Wheelbase

1850mm

Fuel tank capacity

25L

Battery Model

12V9Ah

Economical fuel consumption

6L/100km

Maximum load

450kg

Vehicle Net Weight

500kg

Ground Clearance

270mm

Startup method

Electric start

Tire specifications

12 inches

Dimensions

2900-1520-1620/Length, width and height

Electric version of the five-seat Wrangler assault vehicle



Motor

3000W

Battery

60V52A

Frame

Non-load bearing body

Transmission mode

Rear drive shaft drive belt (one-piece full bridge) differential

Speed ​​Shift

High Gear

Gear

Neutral Reverse Forward

Shock absorption method

Front and rear longitudinal leaf springs + hydraulic shock balancing system

Lubrication method

Pressure splash

Brake type

Four-wheel hydraulic disc brakes

Battery life

30-40 km

Seat height: 670mm



Wheelbase: 1850mm



Speed

45-50

Charging time

About 8 hours

Maximum load

450kg

Vehicle Net Weight

50kg

Ground Clearance

270mm

Startup method

Electric start

Tire specifications

12 inches

Dimensions

2900-1520-1620/Length, width and height
